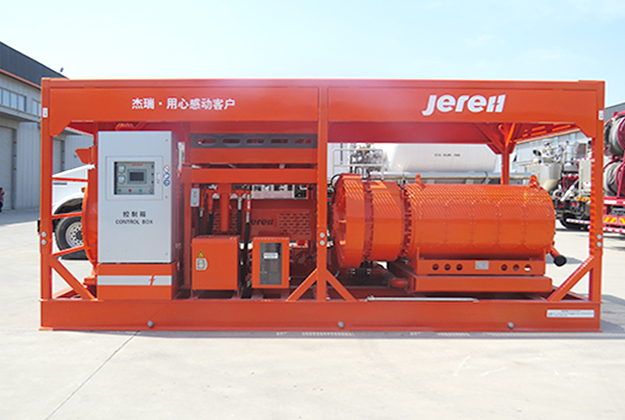

Intelligent Sand Conveyor

Safe: Free the operator from working aloft, completely eliminating hazards.

Description

Features

⊙ Safe: Free the operator from working aloft, completely eliminating hazards.


⊙ Economic: Patented bag breakage-free technology dramatically reduces cost


⊙ Optional with multiple independent liquid additive systems.


⊙ Efficient: Automated sand discharge by one-key setting permits easy operation.


Specifications

Model

CSQ120

Carrier

Skid

Max. Storage Capacity

4,240 ft³ (120 m³)

Sand Conveying System

Dual-belt, automatic operation & fixed belt conveying.

Max. Conveying Capacity (Single Belt)

1.5 m³/min

Lifting System

Automatic operation, one-key positioning & resetting, double cranes

Rated Lifting Load (Single Crane)

4,410 lbs (2,000 kg)

Lifting Efficiency (Single Crane)

About 1 bag/min
