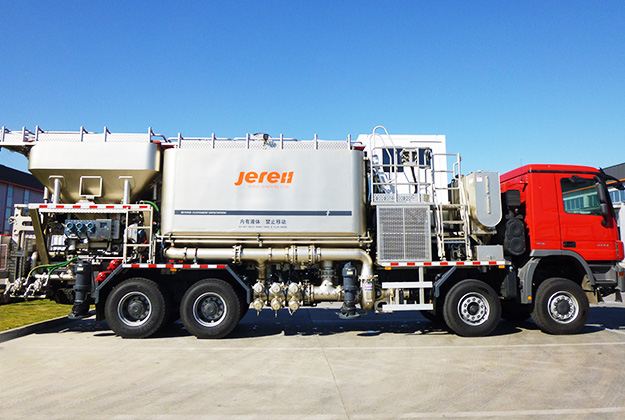

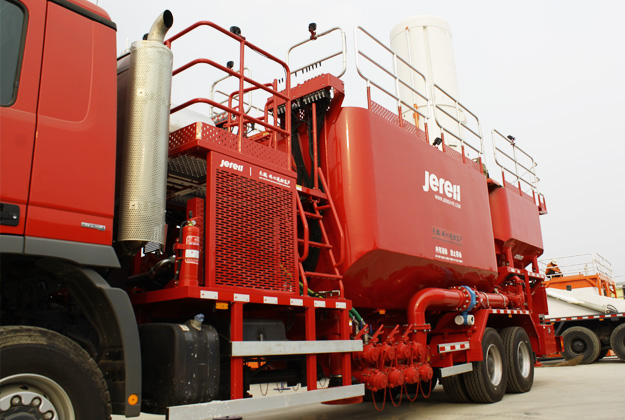

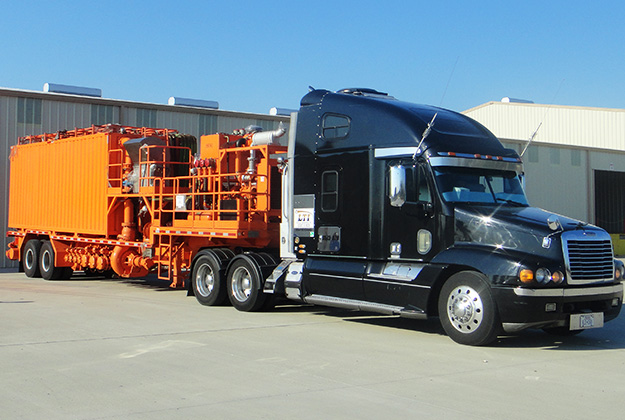

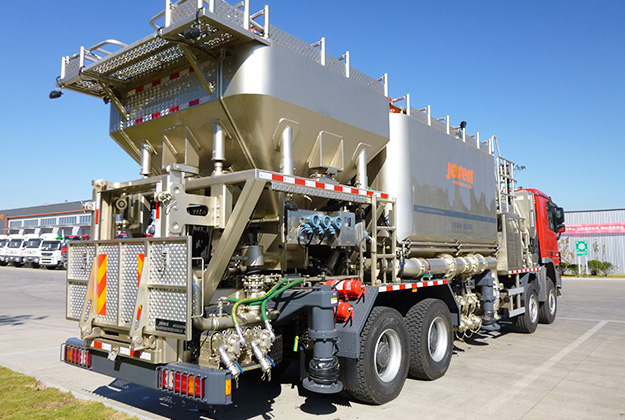

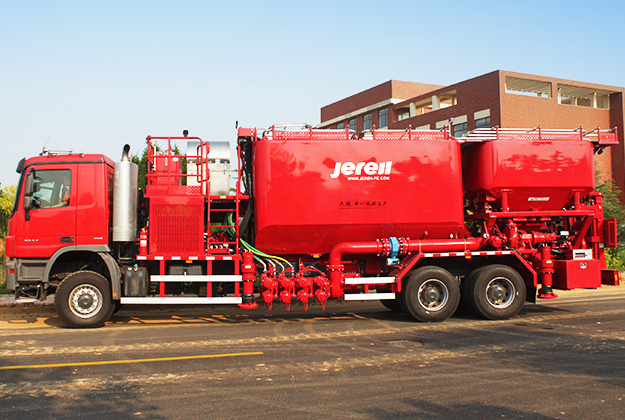

Hydration Unit

Large flowrate with high quality fluid: self-developed mixer and mixing system can mix the gel powder and water, concentrated solution and water efficiently.

Description

Features

⊙ Large flowrate with high quality fluid: self-developed mixer and mixing system can mix the gel powder and water, concentrated solution and water efficiently.


⊙ High automation: one-button intelligent control mode reduces the labour intensity greatly.


⊙ Stable and reliable system matching: high quality executive parts, electric parts and hydraulic parts ensure the long-time and high power operation.


⊙ Large volume powder tank reduces the powder feeding frequency during large-scale operation, ensuring the continuous operation.


⊙ Liftable control cabin, convenient for observing the tank level. The air conditioner and lights are equipped to improve the operation comfort of the operator.


Specifications

75 bbl Hydration Unit

Model

75 bbl

Carrier

Truck(BENZ/SINOTRUK)

Skid

Trailer

Twin-Truck

Power Source

Chassis

CAT/DDC

Chassis

Suction Centrifugal Pump

10×10

Discharge Centrifugal Pump

10×8

Max. Discharge Flowrate

75 bpm (12 m³/min)

Powder-water Weight Ratio

0.2%-0.6%

Chemical Additive Pump Qty.

4

Hydration Tank

(100 BBL) 16 m³

(5 agitators)



(220 BBL) 35 m³

(6 agitators)



(180 BBL) 28 m³

(6 agitators)



Dry Powder Tank

(32 BBL) 5 m³, two augers, with electronic scale

A separate powder tank trailer can hold 4×(32 BBL) 5m³ powder tanks, each of which is designed with electronic scale. Transportation with powder is available.

Control Mode

Auto/Manual/Remote Control

Monitoring

Video monitoring, viscosity and PH monitoring, operation data storage.

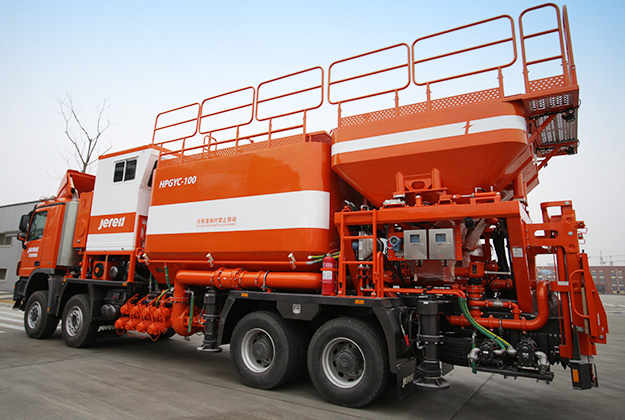

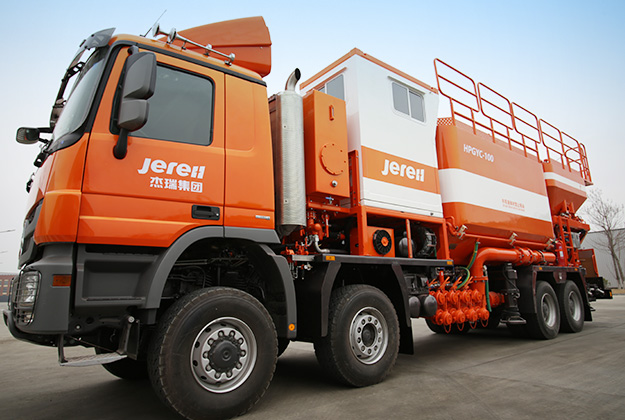

100 bbl Hydration Unit

Model

100 bbl

Carrier

Truck (BENZ/SINOTRUK)

Skid

Trailer

Power Source

Chassis +deck engine

Electric/Diesel drive

CAT/DDC

Suction Centrifugal Pump

12×12

Discharge Centrifugal Pump

12×12

Max. Discharge Flowrate

100 bpm (16 m³/min)

Powder-water Weight Ratio

0.2%-0.6%

Chemical Additive Pump Qty.

4

Hydration Tank

(90 BBL) 14 m³

(3 agitators)

(100 BBL) 16 m³

(5 agitators)

(180 BBL) 28 m³

(6 agitators)

Dry Powder Tank

(32 BBL) 5 m³, two augers, with electronic scale

Control Mode

Auto/Manual/Remote Control

Monitoring

Video monitoring, viscosity and PH monitoring, operation data storage

Shear-mixer Hydration Unit

Model

130 bbl

Carrier

Skid

Power Source

VF motor

Suction Centrifugal Pump

12×12

Discharge Centrifugal Pump

12×12

Max. Discharge Flowrate

130 bpm (20 m³/min)

Powder-water Weight Ratio

0.2%-0.6%

Chemical Additive Pump Qty.

4

Hydration Tank

(50 bbl) 8 m³ (one agitator)

Dry Powder Tank

2×(32 BBL) 5 m³, high-precision auger, each tank with electronic scale

Mixer

Shear

Control Mode

Auto/Manual/Remote Control

Monitoring

Video monitoring, viscosity and PH monitoring, operation data storage.

COMBO (Hydration & Acid Mixing)

Model

COMBO

Carrier

Skid

Engine

CAT

Acid Supply Centrifugal Pump

5×4

Water Centrifugal Pump

5×4

Discharge Centrifugal Pump

10×8

Max. Discharge Flowrate

75 bpm (12 m³/min)

Chemical Additive Pump Qty.

8

Mixing Tank

(10 bbl) 1.5 m³, with agitator

Dry Powder Tank

(10 bbl) 1.5m³, high-precision auger, with electronic scale

Control Mode

Manual/Auto
