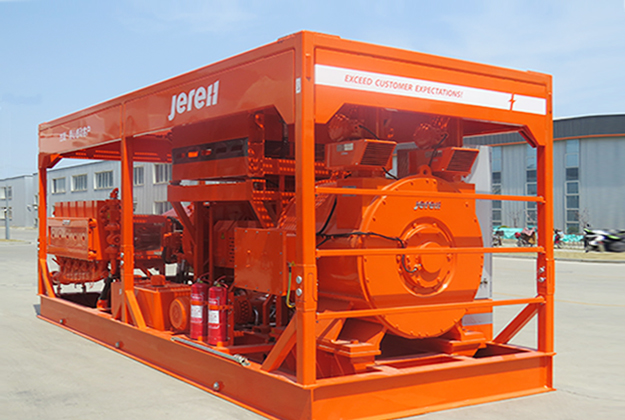

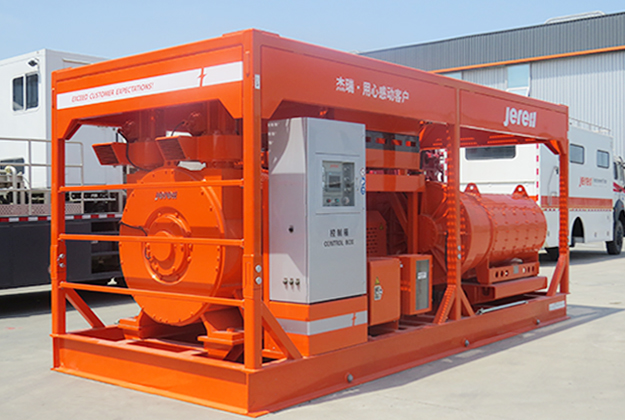

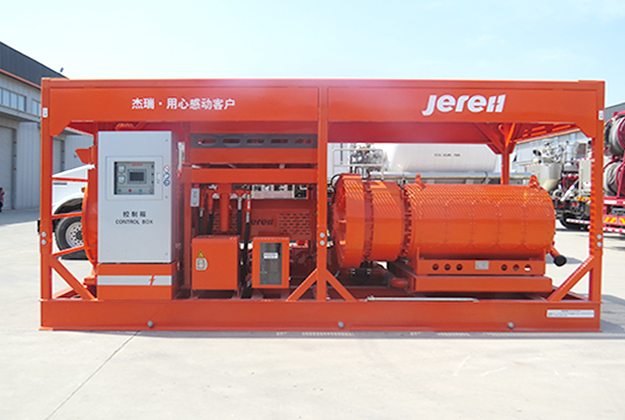

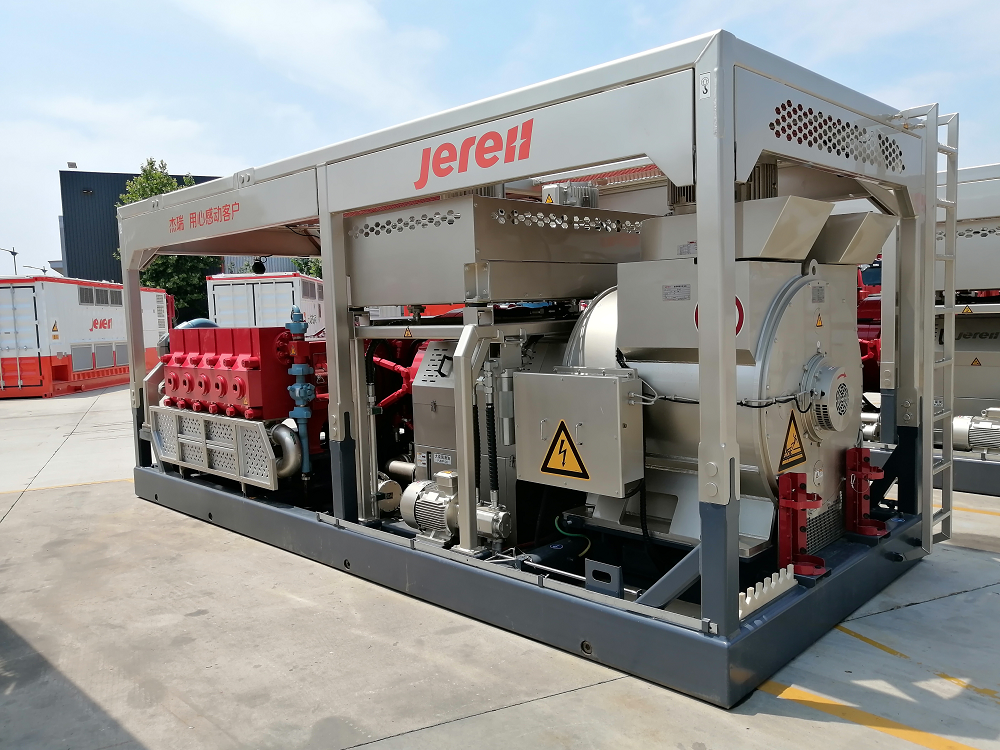

Electric Frac Pumper

Available infinitely variable speeds for steady operation

Description

Features

Available infinitely variable speeds for steady operation.


Lower consumption realizes less CAPEX.


No NOx emission and lower noise level, more eco-friendly.


Designed with compact structure, smaller size, lighter and higher power density.


Self-produced 5000HP、7000HP and 8000HP plunger pump with long stroke and high rod load offer dedicated solutions for frac jobs of high pressure, high rate and continuous working hours.


One unit is not only available for continuous water injection but conventional or unconventional oil & gas fracturing operations, with optional fluid supply pump.


Specifications

Model 2500hp 5000hp 6000hp 8000hp 7000hp
Carrier Skid Trailer
Plunger Pump JR3300QP JR5000QPE JR7000QPE JR8000QPE JR7000QPE
Plunger Dia 4" 4.5" 5" 4.5" 5" 4.5" 5" 5.5" 5" 5.5" 5" 5.5"
Max.Working Pressure 19,880psi (137.1MPa) 15,704psi (108.3MPa) 12,717psi (87.7MPa) 20,000psi (138MPa) 16,196psi (111.7MPa) 20,000psi (138MPa) 16,095psi (111MPa) 13,383psi (92.3MPa) 20,000psi (138MPa) 16,529psi (114MPa) 13,751psi (94.8MPa) 11,368psi (78.4MPa)
Max.Discharge Flowrate 8.8BPM (1.4m³/min) 10.7BPM (1.7m³/min) 13.5BPM (2.2m³/min) 12.5BPM (2m³/min) 15.7BPM (2.5m³/min) 15.1BPM (2.4m³/min) 18.9BPM (3m³/min) 22BPM (3.5m³/min) 18.2BPM (2.9m³/min) 22BPM (3.5m³/min) 18.9BPM (3.0m³/min) 22.9 BPM (3.6m³/min)
Overall Weight 57,320lbs(26,000kg) 67,241lbs(30,500kg) 76,059lbs(34,500kg) 82,673lbs(37,500kg) 128980lbs(58,500kg)
Overall Dimensions (L×W×H) 260×100×106in

(6,600×2,550×2,700mm)

244×100×107in

(6,200×2,550×2,730mm)

260×100×106in

(6,600×2,550×2,700mm)

295×102×110in

(7,500×2,600×2,800mm)

725×102×163in

(18,400×2,590×4,150mm)
