Truck Mounted Coiled Tubing Unit (Twin-truck)

Truck Mounted Coiled Tubing Unit (Twin-truck)

Description

High maneuverability helps adapt the rough roads in mountain and hill areas.
Strengthened chassis frame greatly improves the load capacity.
Large capacity reel with integral design allows easy and safe change.
Dual BOP system meets customer’s demand for specific applications.
Connections for support equipment such as the yard spooler are available to extend the unit function.
The injector is complete with tubing straightening system to reduce tubing damage and extend tubing life.

Specifications

Model

LGC630

LGC450

LGC360

LGC270

Truck

BENZ/SINOTRUK, etc.

Power

Truck engine

Tubing Reel

LGGT176-90-96

LGGT148-80-86

LGGT148-80-78

LGGT120-72-78

Tubing Reel

2 3/8”-20,000 ft

2’’-34,800 ft

2’’-21,650 ft

1 3/4”-27,500ft

2’’-19,680 ft

1 3/4”-24,600 ft

1 3/4”-14,100 ft

1 1/2”-20,700 ft

Injector

ZRT-140K

ZRT-100K

ZRT-80K

ZRT-60K

Continuous Lifting Capacity

140,000 lb

100,000 lb

80,000 lb

60,000 lb

Continuous Snubbing Capacity

70,000 lb

50,000 lb

40,000 lb

30,000 lb

Well Control Equipment

4 1/16", 5 1/8"

3 1/16", 4 1/16"

Max. Working Pressure

10,000 psi/15,000 psi/20,000 psi

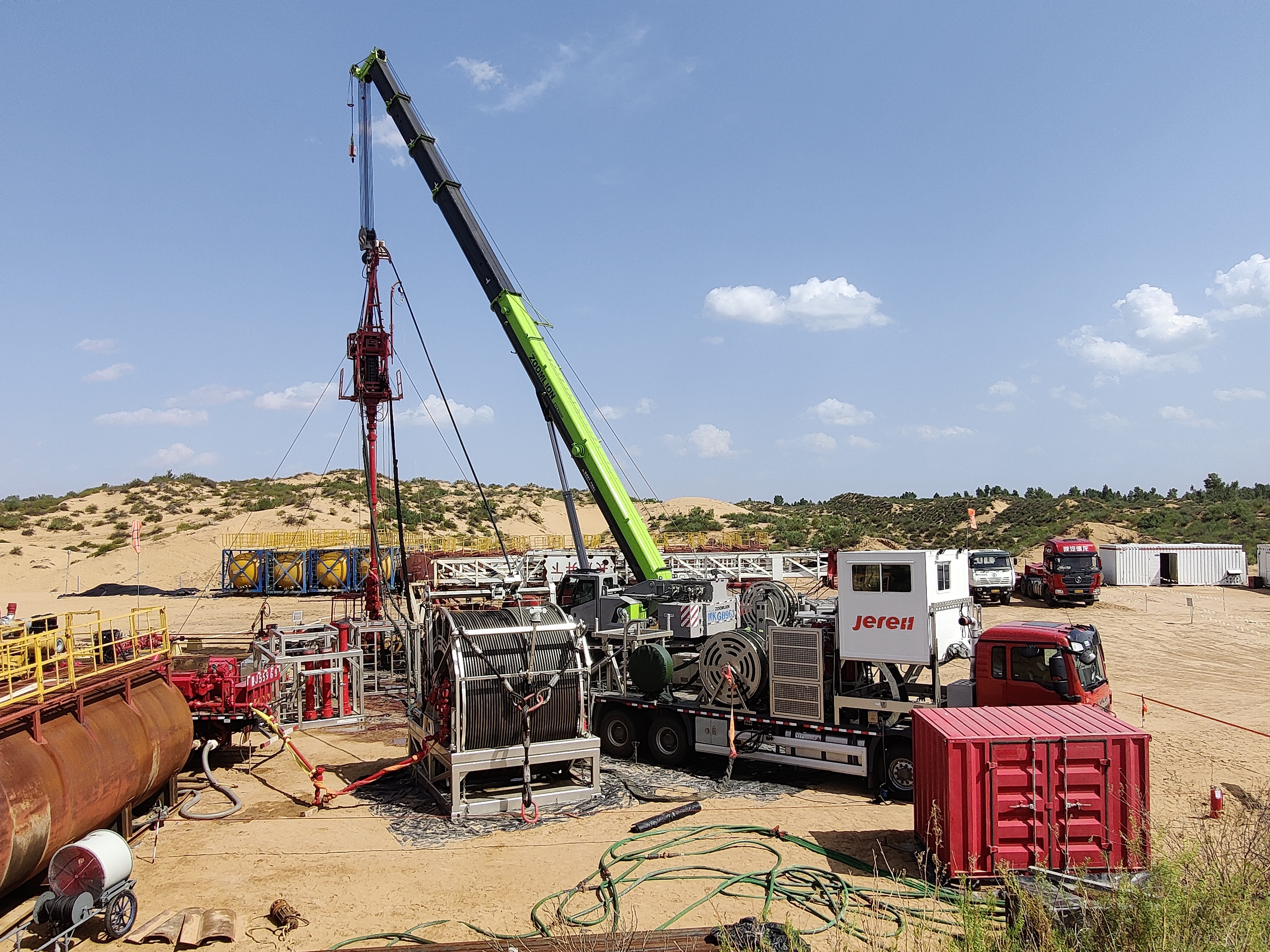

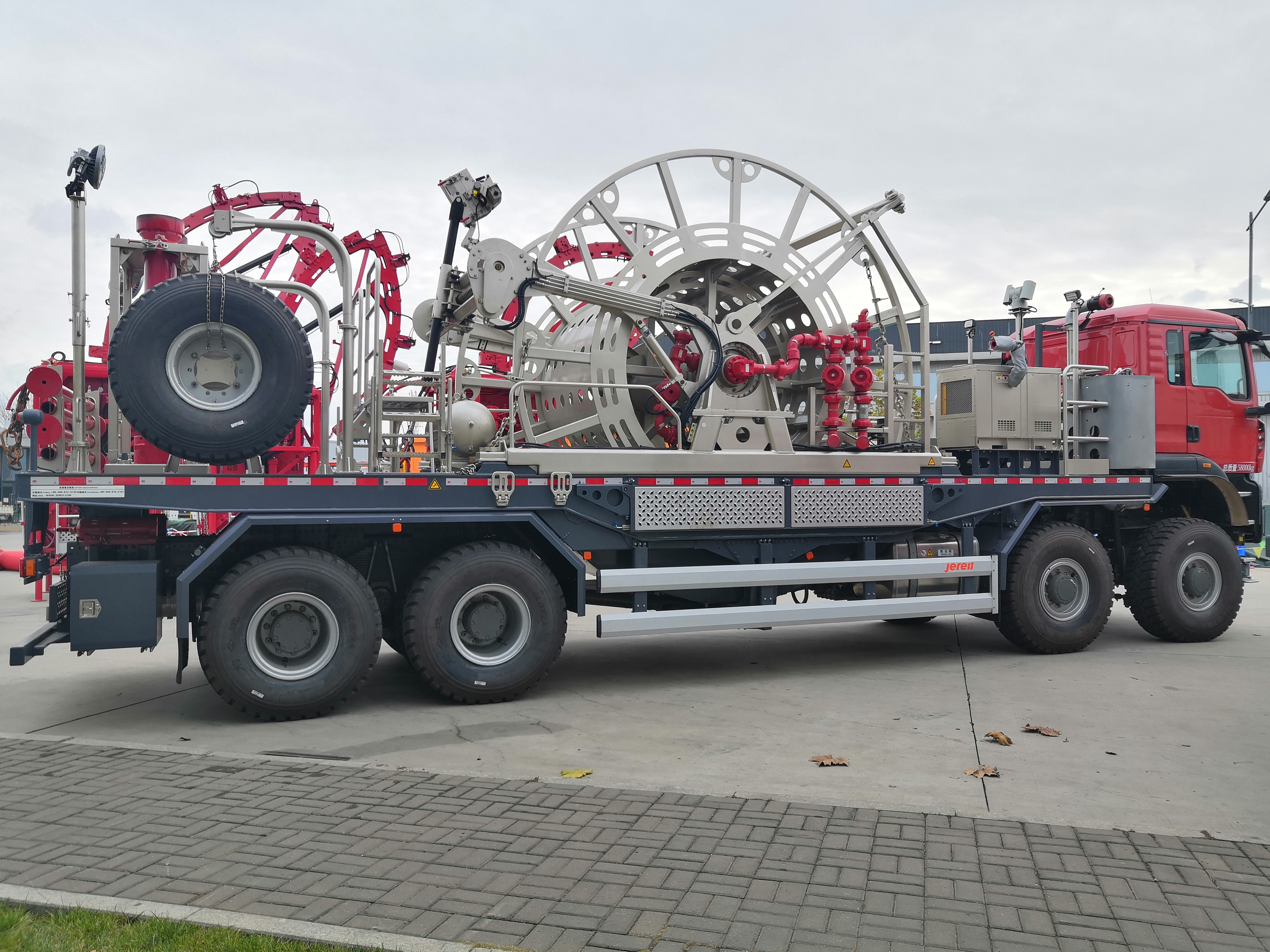

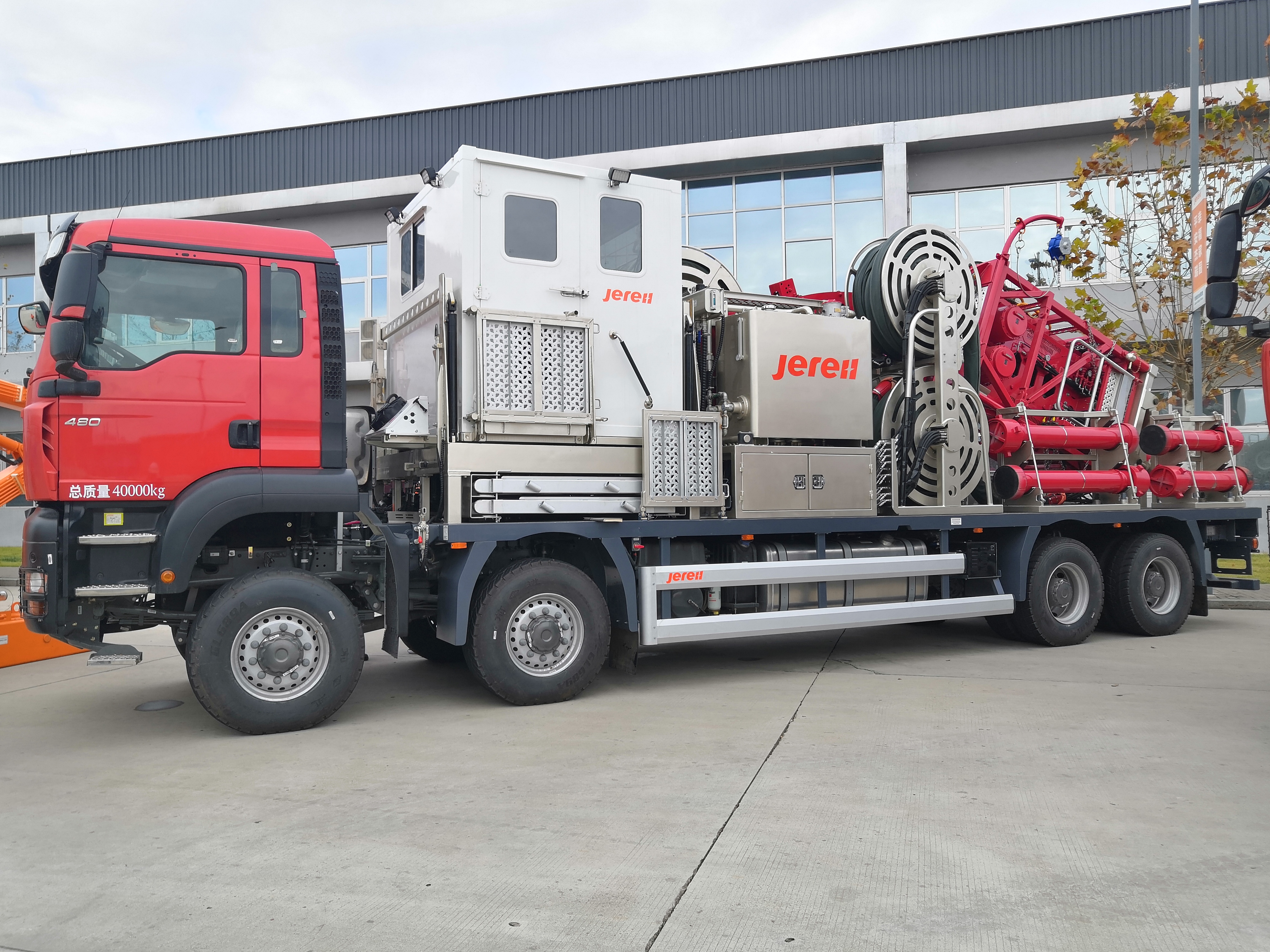

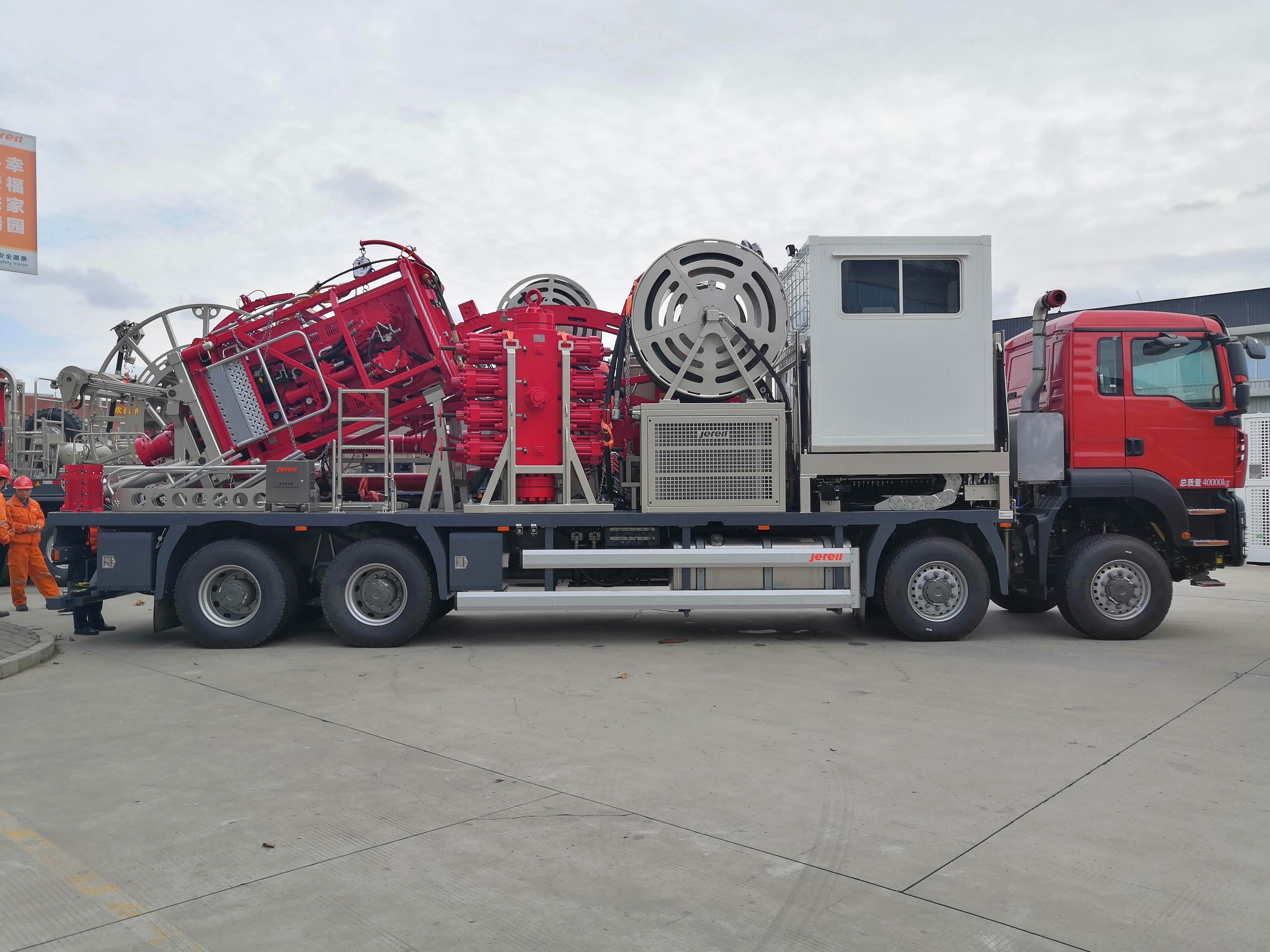

Photo Gallery
