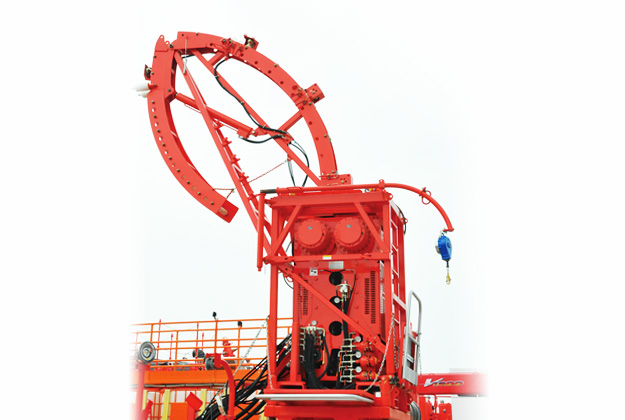

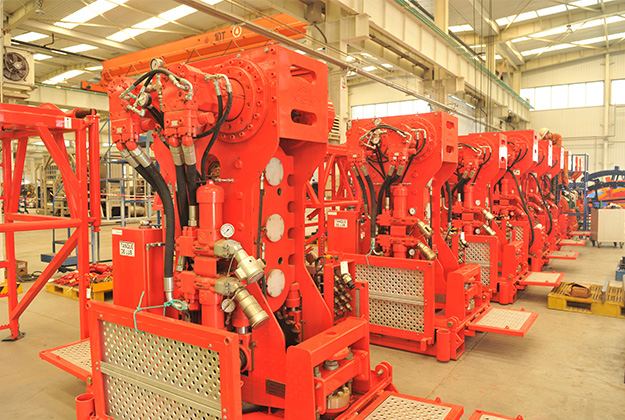

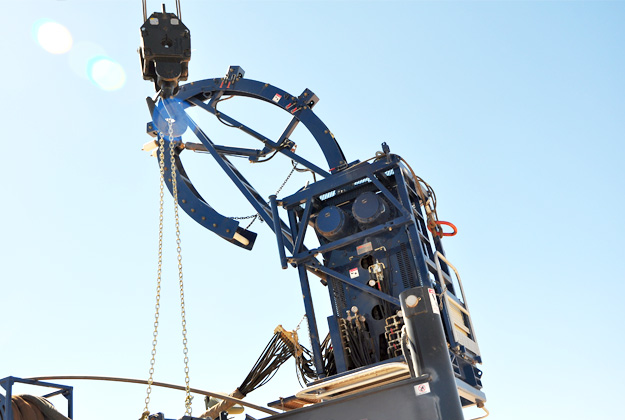

Coiled Tubing Injector

Description

Specifications

Photo Gallery

Data Download

⊙ 10K~200K full-range injectors meet diversified customer requirements.

⊙ Dual piston motor input, stepless speed regulation and dual motor pressure balance ensure stable operation.

⊙ The explosion-proof electric motor drive system is optional.

⊙ IAutomatic brake system ensures operation safety.

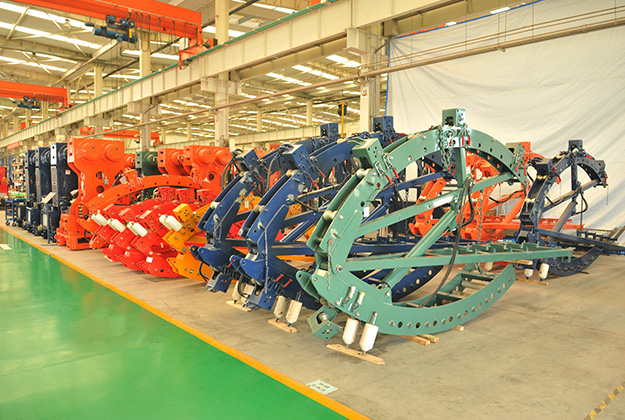

⊙The injector is complete with tubing straightening system to reduce tubing damage and extend tubing life.

⊙Patented gripper block allows quick removal and installation; float gripping mechanism ensures stable gripping performance.

Model	10K	20K	40K	60K	80K	100K	140K	200K
Continuous Lifting Capacity	10,000 lb	20,000 lb	40,000 lb	60,000 lb	80,000 lb	100,000 lb	140,000 lb	200,000 lb
Continuous Snubbing Capacity	/	10,000 lb	20,000 lb	15,000 lb	40,000 lb	50,000 lb	70,000 lb	77,000 lb
Max. Speed @ Min. Displacement	/	/	220 ft/min	205 ft/min	190 ft/min	170 ft/min	140 ft/ min	110 ft/ min
Max. Speed @ Max. Displacement	130 ft/min	179 ft/min	75 ft/min	75 ft/min	75 ft/min	58 ft/min	58ft/min	40 ft/ min
Tubing OD	1/2~3/4”	3/4~1 1/2"	1~2"	1~2 3/8"	1 1/4~ 3 1/2"	1 1/2~ 3 1/2”	2~3 1/2”	2~4 1/2”
Ultra Low Speed Control	19.3 in/min	19.3 in/min	7.9 in/min	7.9 in/min	2.3 in/min	2.3 in/min	0.8 in/min	0.8 in/min
