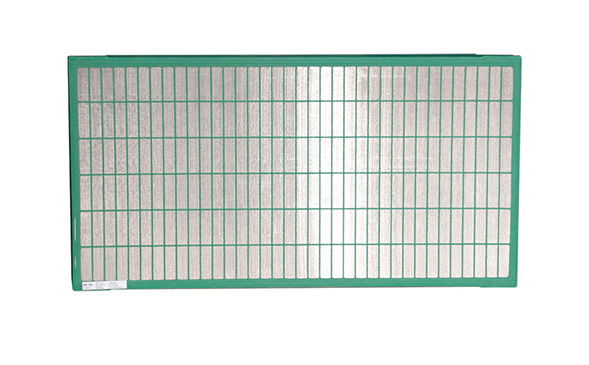

Shaker Screen

Jereh Shaker Screen is a high quality & cost effective OEM shaker screens, and replacement screens for different shale shaker manufacturers. With the worldwide network branches and partners, we provides technical support, consignment support, and fast delivery to the international drilling industry.

Description

Product Details

⊙High performance wire mesh configuration is compliant to API RP13C with normally longer screen life.

⊙Four side tension of mesh during the heat press to minimize the gap between the top screen and support screens, in a result extending the screen life.

⊙Replacement for MI-Swaco Mongoose, MI-Swaco MD-3/MD-2, Nov Brandt Cobra, Venom, VSM-300, FSI screen, Derrick FLC 2000 FLC 500 etc. And we can customize for your screen dimension.

Specifications

ASTM Mesh and Cut Point
D100 Cut Point ASTM Single Mesh
2000 microns ASTM 10 Mesh
1000 microns ASTM 18 Mesh
850 microns ASTM 20 Mesh
710 microns ASTM 25 Mesh
600 microns ASTM 30 Mesh
500 microns ASTM 35 Mesh
425 microns ASTM 40 Mesh
355 microns ASTM 45 Mesh
300 microns ASTM 50 Mesh
250 microns ASTM 60 Mesh
212 microns ASTM 70 Mesh
180 microns ASTM 80 Mesh
150 microns ASTM 100 Mesh
125 microns ASTM 120 Mesh
106 microns ASTM 140 Mesh
90 microns ASTM 170 Mesh
75 microns ASTM 200 Mesh
63 microns ASTM 230 Mesh
53 microns ASTM 270 Mesh
45 microns ASTM 325 Mesh
38 microns ASTM 400 Mesh
