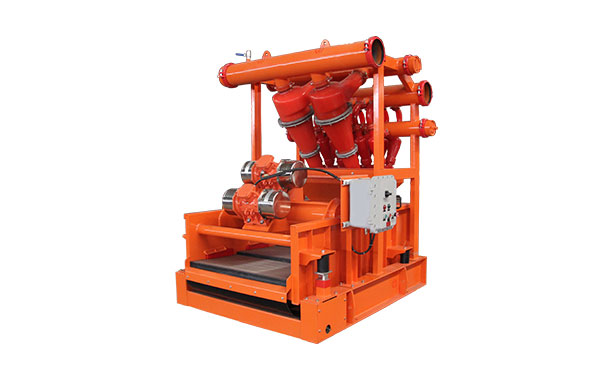

Mud Cleaner

The drilling liquid cleaner is fixed drilling liquid solids control equipment consisting of desander, desilter and shale shaker. It integrates the performance of aforesaid three equipment’s, featuring large disposal capacity, rapid treatment speed, less energy consumption, occupying small space, etc. It receives the most welcome in the international drilling market. ​

Description

Specifications

Model JRZQ300×2
/100×12
JZQ300×2
/100×14
JZQ300×2
/100×16
JZQ250×2
/100×12
JZQ250×2
/100×16
JZQ250×2
/100×16
Desander parameters
Hydrocyclone 12″×2 10″×2
Working pressure 0.2~0.45 MPa
Capacity 240 m3/h 200 m3/h
Seperation size 44~74 μm
Desilter parameters
Hydrocyclone 4″×12 4″×14 4″×16 4″×12 4″×14 4″×16
Working pressure 0.2~0.45 MPa
Capacity 200 m3/h 220 m3/h 240 m3/h 200 m3/h 220 m3/h 240 m3/h
Seperation size 20~44 μm
Inlet diameter 6″ (150mm)
Outlet diameter 8″ (200mm)
Supporting shaker JZS220-3P / JZS240-3P / JZS280-3P
Weight 2600kg / 2750kg / 2950 kg
Overall dimension 2700×2550×2600/2700×2550×2600/3140×2550×2600mm
