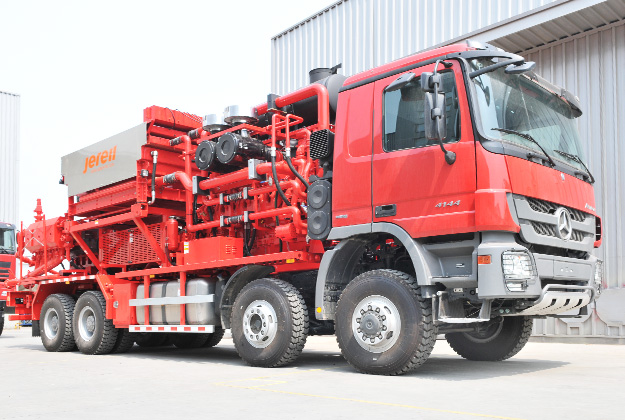

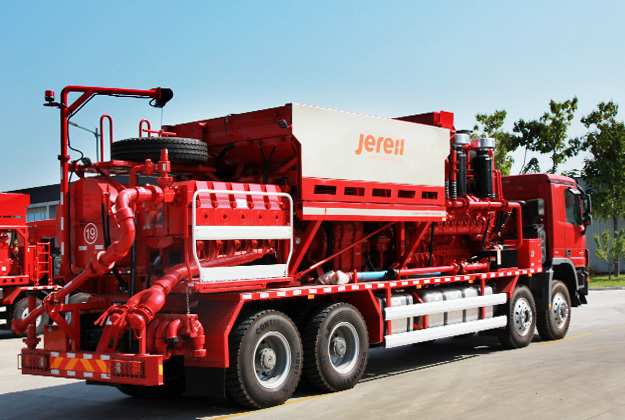

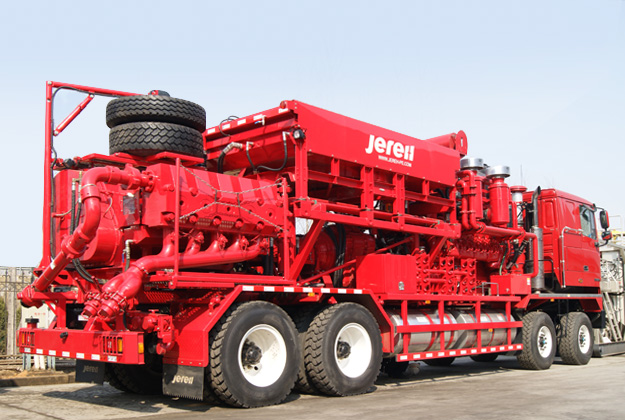

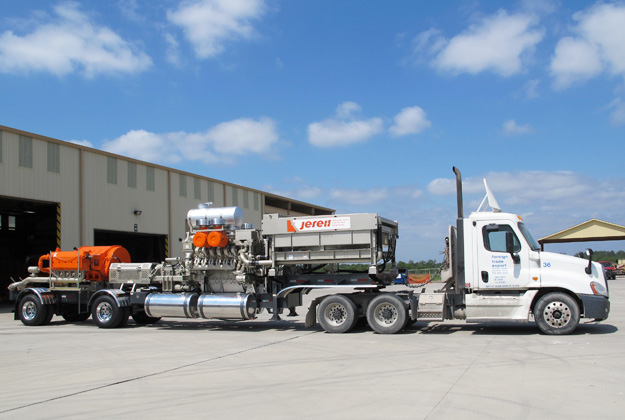

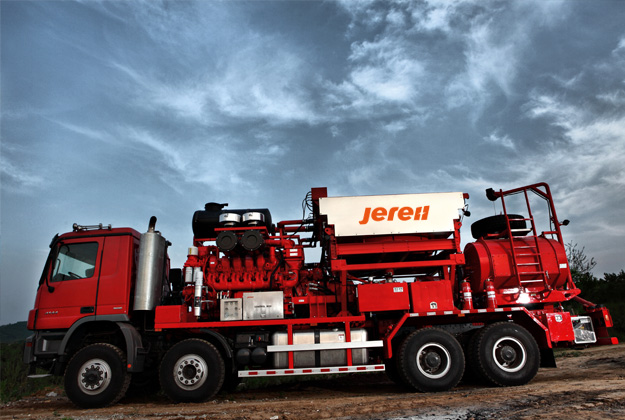

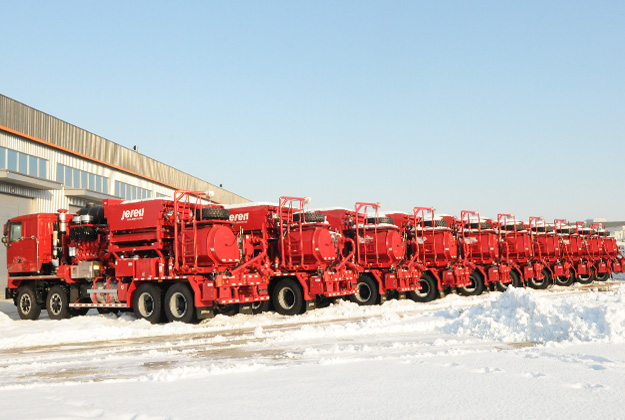

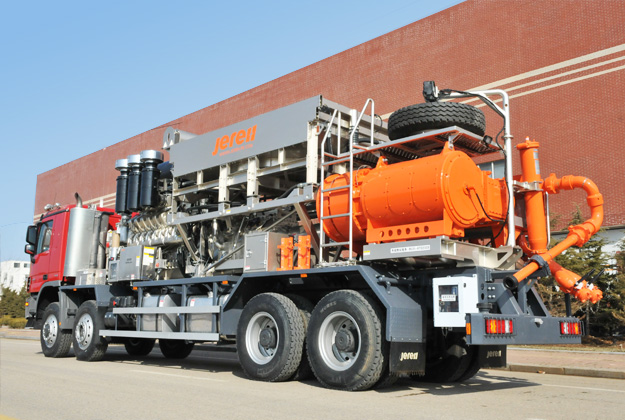

Fracturing Unit

Reasonable layout with reinforced subframe ensures perfect transportation and cross-country performance, suitable for domestic rough road conditions such as mountains, hills and desert areas

Description

⊙ Reasonable layout with reinforced subframe ensures perfect transportation and cross-country performance, suitable for domestic rough road conditions such as mountains, hills and desert areas


⊙ Excellent compatibility satisfies fracturing operations with different fracturing fluid;


⊙ Intelligent pumping control system with complete job mode ensures intelligent operation;


⊙ Rigorous and scientific manufacturing idea, stable and multiple safety control measures;


⊙ Advanced wireless and satellite communication technology achieve real-time and remote data transmission and monitoring, leading the fracturing control technology;


⊙ Jereh self-developed Apollo 4500 turbine-driven frac pumper is powered by the turbine engine. Possessing the world's largest single-unit power, it matches with a 5,600hp turbine engine and a 5,000hp fracturing pump, so each Apollo unit with smaller size and lighter weight can output greater power than two traditional diesel engine-driven fracturing units.


Specifications

2250HP Fracturing Unit

Carrier

Truck/Trailer/Skid

Chassis

BENZ/MAN/HOWO/SINOTRUK/BEIBEN

Engine

MTU 12V4000S83/CAT 3512C/CUMMINS QSK50

Transmission

ALLISON 9832 OFS

Plunger Pump

JR2500Q

Plunger Dia.

3.75"

4"

4.5"

5

Max. Working Pressure

17,429 psi

(120.2 MPa)

15,312 psi

(105.6 MPa)

12,093 psi

(83.4 MPa)

9,802 psi

(67.6 MPa)

Max. Discharge Flowrate

13.6 bpm

(2.17 m³/min)

15.5 bpm

(2.46 m³/min)

19.6 bpm

(3.12 m³/min)

24.2 bpm

(3.85 m³/min)

Rated Output Power

2,000 hp (1,490 kW)

2500HP Fracturing Unit

Carrier

Truck/Trailer/Skid

Chassis

BENZ/MAN/HOWO/SINOTRUK/BEIBEN

Engine

MTU 12V4000S83L/CAT 3512C/CUMMINS QSK50

Transmission

ALLISON 9832 OFS

Plunger Pump

JR2500Q

Plunger Dia.

3.75"

4"

4.5"

5"

Max. Working Pressure

17,429 psi

(120.2 MPa)

15,312 psi

(105.6 MPa)

12,093 psi

(83.4 MPa)

9,802 psi

(67.6 MPa)

Max. Discharge Flowrate

13.6 bpm

(2.17 m³/min)

15.5 bpm

(2.46 m³/min)

19.6 bpm

(3.12 m³/min)



24.2 bpm

(3.85 m³/min)



Rated Output Power

2,300 hp (1,680 kW)

3000HP Fracturing Unit

Carrier

Truck/Trailer/Skid

Chassis

BENZ/MAN/HOWO

Engine

MTU 16V4000S83/CAT 3516C/CUMMINS QSK60

Transmission

ALLISON 9832 OFSI

Plunger Pump

JR2800Q

Plunger Dia.

3.75"

4"

4.5"

5"

Max. Working Pressure

20,000 psi

(138 MPa)

18,248 psi

(125.8 MPa)

14,418 psi

(99.4 MPa)

11,678 psi

(80.5 MPa)



Max. Discharge Flowrate

13.7 bpm

(2.17 m³/min)

15.5 bpm

(2.47 m³/min)

19.7 bpm

(3.12 m³/min)

24.3 bpm

(3.86 m³/min)



Rated Output Power

2,500 hp (1,860 kW)

3000HP Reinforced Fracturing Unit

Carrier

Truck/Trailer/Skid

Chassis

BENZ/MAN/HOWO

Engine

MTU 16V4000S83/CAT 3516C/CUMMINS QSK60

Transmission

ALLISON 9832 OFSI

Plunger Pump

JR3300QP

Plunger Dia.

3.75"

4"

4.5"

5"

Max. Working Pressure

20,000 psi

(138 MPa)

20,000 psi

(138 MPa)

16,392 psi

(113 MPa)

13,277 psi

(91.6 MPa)

Max. Discharge Flowrate

13.9 bpm

(2.2 m³/min)

15.8 bpm

(2.51 m³/min)

20.0 bpm

(3.17 m³/min)



24.6 bpm

(3.92 m³/min)



Rated Output Power

2,500 hp (1,860 kW)

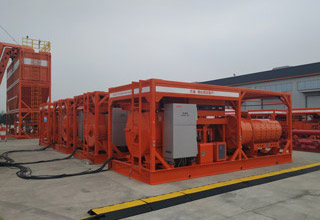

5000HP Turbine Fracturing Unit

arrier

Trailer/Skid

Engine

Turbine Engine

Plunger Pump

JR5000QPW 2.0

SPM QEM5000

Plunger Dia.

4.5"

5"

5.5"

Max. Working Pressure

15,796 psi (108.8 MPa)

12,792 psi (87.3 MPa)

12,964 psi (89.4 MPa)

Max. Discharge Flowrate

12.5 bpm (2.0 m³/min)

15.5 bpm (2.5 m³/min)

14.2 bpm (2.3 m³/min)

Rated Output Power

4,447 hhp (3,316 kW)

•    Based on Working Conditions: Altitude (100ft); Ambient Temp (90℉); Inlet Loss (5 in. H2O); Exhaust Loss (10 in. H2O); Fuel Type (Natural Gas).
