E-Drive Coiled Tubing Unit

E-Drive Coiled Tubing Unit

Description

Low noise & emission, low carbon and eco-friendly;
JR-EHT(Electric Hybrid Technology) system is compatible with multiple power supply modes, more flexible in application;
Direct drive by motor, electric energy recovery in hole and low power consumption at standby state deliver better economy;
Upgraded core algorithm and coordinated control deliver higher intelligence;
Available functions with inspection for key parts, fault diagnosis and intelligent processing make safer operation;
Vector control of motor allows ultra-low speed running at 0.01 m/min, delivering more stable operation;
Seat integrated with operation and control, and monolever control mode enable the operation to be more simple and comfortable.

Specifications

Model

LGC450D

LGC630D

Truck

BENZ/SINOTRUK, etc.

Tubing Reel

LGGT 148-80-86

LGGT 176-90-96

Reel Capacity

2”-21,650 ft

2 3/8”-24,900 ft

Injector

ZRT-100K

ZRT-140K

Continuous Lifting Capacity

100,000 lb

140,000 lb

Continuous Snubbing Capacity

50,000 lb

70,000 lb

Ultra Low Speed

0.4 in/min (0.01 m/min)

Battery pack

LFP Battery

Can independently drive the device for 2 hours or more

Well Control Equipment

4 1/16", 5 1/8"

Max. Working Pressure

10,000/15,000/20,000 psi

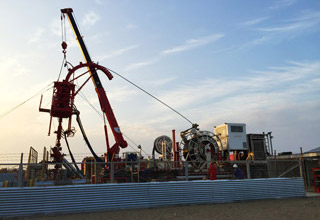

Photo Gallery
