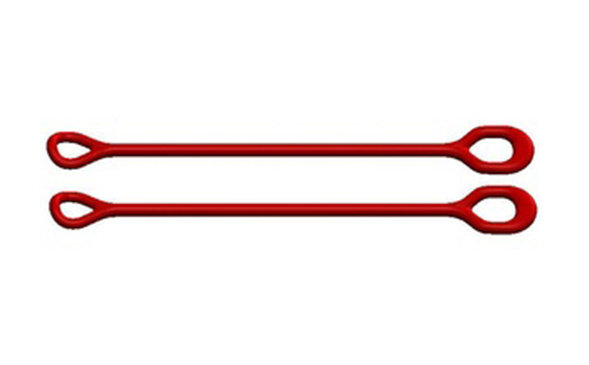

Weldless Links

Weldless links are forged from a single piece of high-quality alloy steel to provide maximum tensile strength. More weight and “plus-diameter” in critical areas make these links extra strong. Short upper eye design means better balance and easier elevator handling, while reducing war of the eye section against the swivel bail or body. The Weldless Links are designed and manufactured according to API SPEC 8C Specification for drilling and production hoisting equipments.

Description

Product Details

⊙The Weldless Links are designed and manufactured according to API SPEC 8C.

⊙Weldless links are forged from a single piece of high-quality alloy steel to provide maximum tensile strength.

Specifications

Size-inches Size-mm Rated Cap/Set tons Size-inches Size-mm Rated Cap/Set tons
1-3/4X48 44x1219 150 3-1/2x72 89x1829 500
1-3/4X60 44x1524 150 3-1/2x96 89x2438 500
1-3/4X72 44x1829 150 3-1/2x108 89x2743 500
1-3/4X84 44x2134 150 3-1/2x120 89x3048 500
1-3/4X96 44x2438 150 3-1/2x132 89x3353 500
      3-1/2x144 89x3688 500
2-1/4 x60 57x1524 250 3-1/2x160 89x4064 500
2-1/4x72 57x1829 250 3-1/2x168 89x4267 500
2-1/4x84 57x2134 250 3-1/2x180 89x4572 500
2-1/4x96 57x2438 250 3-1/2x192 89x4826 500
2-1/4x108 57x2743 250 3-1/2x216 89x5486 500
2-1/4x132 57x3353 250 3-1/2x240 89x6096 500
2-1/4x168 57x4267 250 3-1/2x264 89x6706 500
2-1/4X240 57x6096 250 3-1/2x360 89x9144 500
2-1/4X360 57x9144 250 3-1/2x480 89x12192 500
2-1/4X480 57x12192 250 3-1/2x540 89x13716 500
      3-1/2x600 89x15240 500
2-3/4x60 70x1524 350 3-1/2x720 89x18288 500
2-3/4x72 70x1829 350
2-3/4x84 70x2134 350 4-3/4x108 121x2743 750
2-3/4x96 70x2438 350 4-3/4x132 121x3353 750
2-3/4x108 70x2743 350 4-3/4x144 121x3688 750
2-3/4x120 70x3048 350 4-3/4x160 121x4064 750
2-3/4x132 70x3353 350 4-3/4x180 121x4572 750
2-3/4x144 70x3688 350 4-3/4x216 121x5486 750
2-3/4x150 70x3810 350 4-3/4x240 121x6096 750
2-3/4x168 70x4267 350 4-3/4x264 121x6706 750
2-3/4x180 70x4572 350
2-3/4x192 70x4876 350 5-1/2x180 1407x4572 1000
2-3/4x216 70x5486 350 5-1/2x240 1407x6096 1000
2-3/4x240 70x6096 350 5-1/2x264 1407x6706 1000
2-3/4x290 70x7366 350 NoteAlothelengtuporequests.
2-3/4X300 70x7620 350
2-3/4x360 70x9144 350
2-3/4x480 70x12192 350
2-3/4X540 70x13716 350
2-3/4X600 70x15240 350
