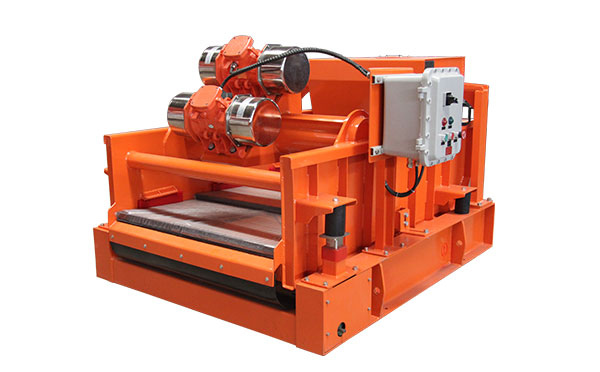

Shale Shaker

Shale shaker is the latest solid control equipment developed by our company for oil drilling. It absorbs the design experience and advanced technology of similar products at home and abroad, adopts imported exciting motor, and is the most advanced vibrating screen in our country at present. Our company can manufacture double or triple vibrating screens suitable for drilling fluid purification according to customers'needs and provide phase.

Description

Specifications

Photo Gallery

Data Download

Description

Product Details

⊙ZS752 series Mini shakers have been widely used in trench-less HDD, water well drilling, diamond core drilling etc., best option for compact system and low flow rate.

⊙ZS703 & ZS594 series single deck shale shaker is popular in oil gas drilling, big trench-less HDD projects, or other industry separation demand.

⊙ZS706 series double deck shaker is properly designed for piling, TBM, big oil gas rig, big trench-less project, or the industry separation for multi- phase separation.

Specifications

Model ZS752F-MDZF ZS703F-SDZF ZS703F-SHBF ZS594F-SHBF ZS706F-SHBF
Vibration Mode Linear Motion
Capacity(m³/h) 45(200GPM) 120(528GPM) 140(616GPM) 140(616GPM)
Vibration Motor(Kw) 2×1.0 2×1.72 2×1.94
Screen Qty(Pcs) 2 3 4 6
Screen Size(mm) 750×900 700×1250×29 585×1165×40 Up:750×900/Down:700×1250
Screen Area(m²) 1.35 2.63 2.73 Up:2.03/Down:2.63
Adjustable G Force ≤7.5G ≤7.3G
Vibration Amplitude(mm) 4.14~5.96 4.04~5.82
Deck Angle Range +2° -1°~+5°
Feeding Type Top Box Feeder Weir Feeder
Weir Height(mm) 714 1060 895
EX Standard ExdIIBt4 / IEC EX/ ATEX
Weight(Kg) 929 1665 1571 1624 1795
L×W×H(mm) 1816×1657×1083 2462×2007×1476 2744×1968×1435 2989×1968×1435 2744×1968×1435
Remarks Above capacity only for reference, actual capacity will be various as per screen API No. and mud conditions
