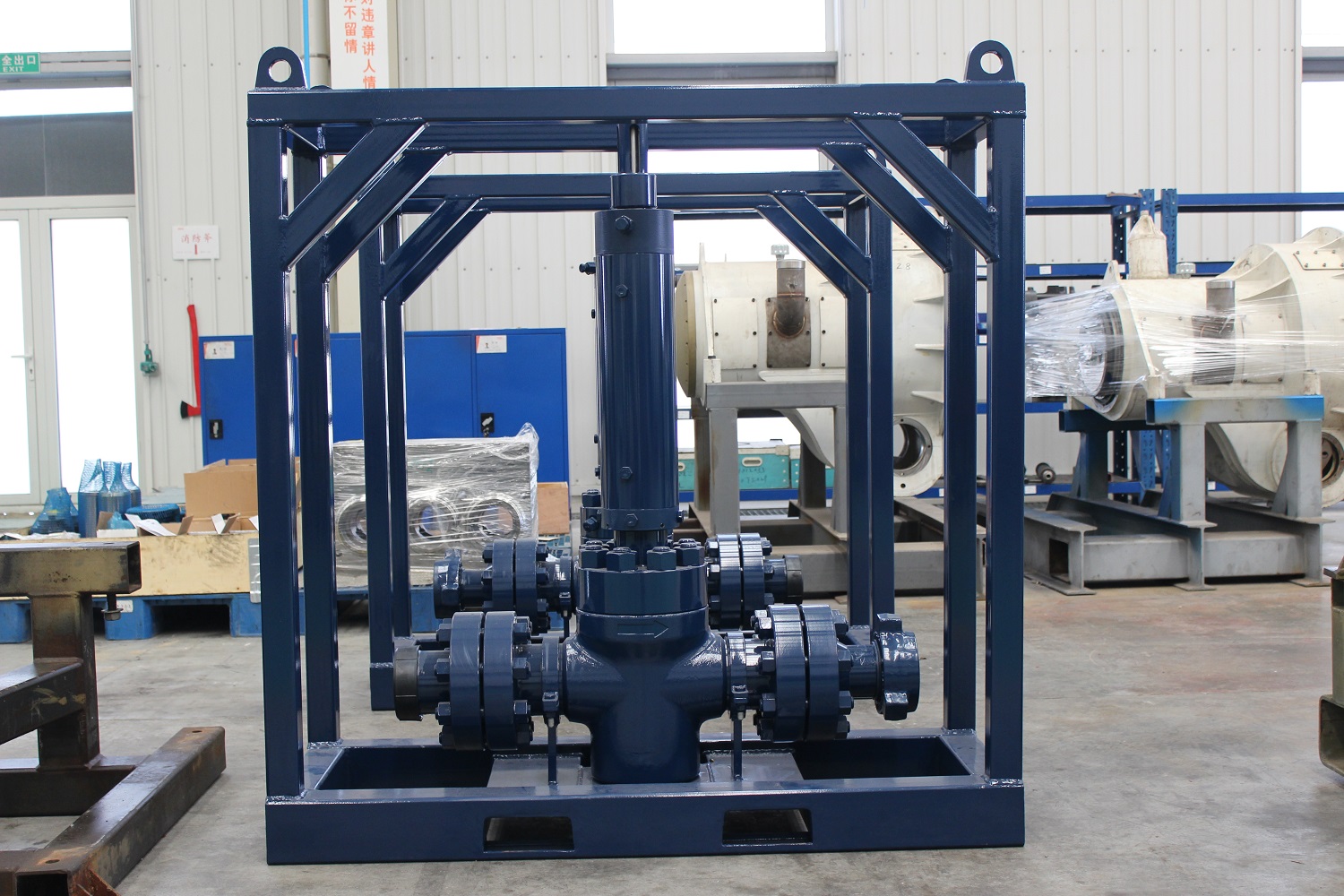

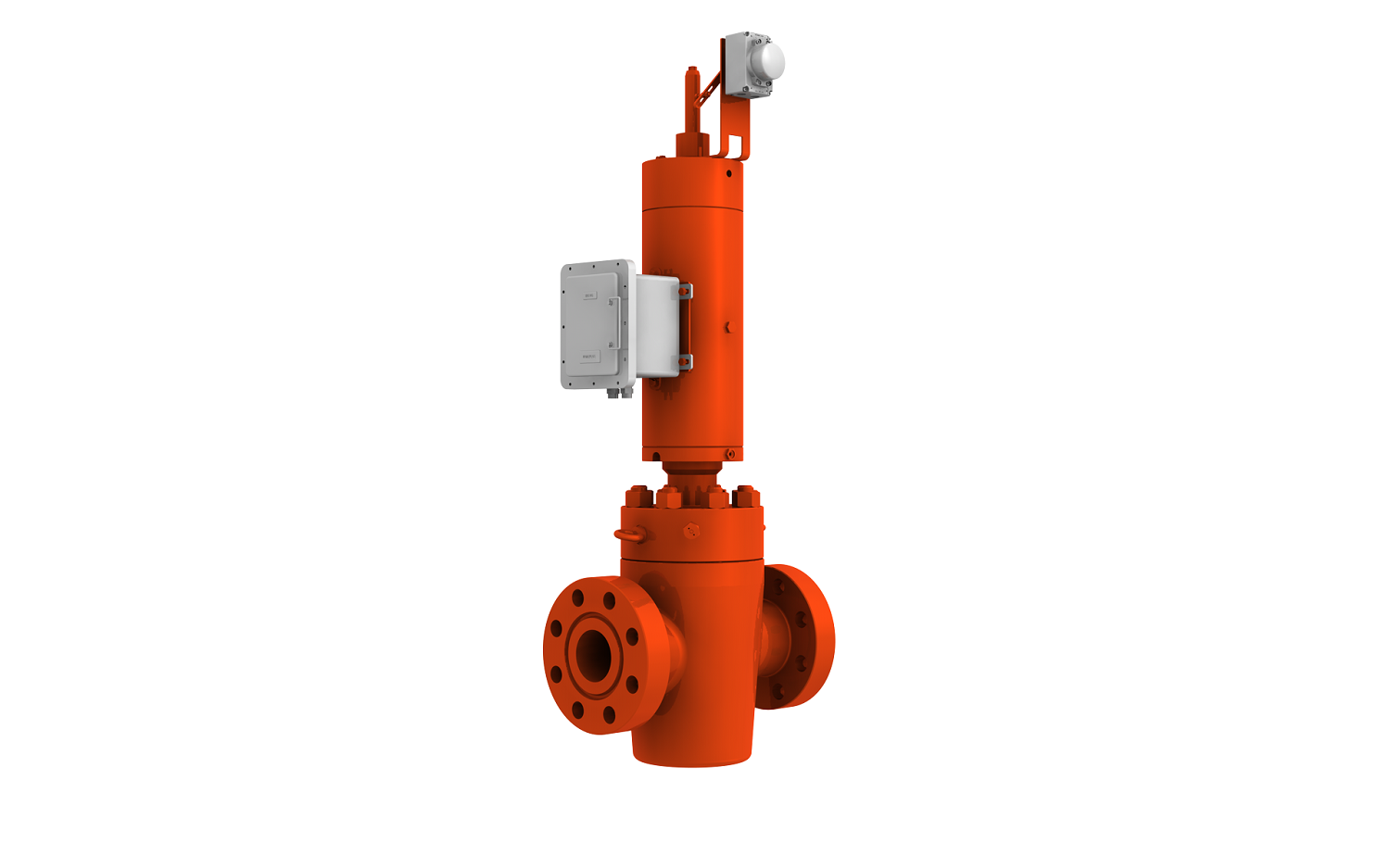

Safety Valve

Jereh Safety Valve is equipped with pneumatic, hydraulic or electric actuator, widely used in Christmas tree and surface manifold. In case of any emergency such as oil/gas leak or fire, Safety Valve can immediately shut off well to protect production.

Description

Jereh Safety Valve is equipped with pneumatic, hydraulic or electric actuator, widely used in Christmas tree and surface manifold. In case of any emergency such as oil/gas leak or fire, Safety Valve can immediately shut off well to protect production.

Features

Adopting gate valve structure
Actuator delivers high pressure containing capability and long life.
Able to shut off in case of failure
Quick shut within 4-8 seconds
Equipped with lock and fire-proof functions
Applicable to master valve and wing valve of Christmas tree and surface manifold
A control panel for actuator

Specifications

Bore 1 13/16"~4 1/16"
Working Pressure 3,000 psi~15,000 psi
Temperature Level K~U (-75℉~250℉)
Material Grade AA, BB, CC, DD, EE, FF, HH
Manufacturing Level PSL1~PSL4
Performance Level PR1, PR2
