Power Swivel

Power Swivel is the device insta lling on the derrick of servicing rig, to provide rotating power. Except the use for such workover jobs as casing milling, milling, drilling cement pl​ug and bridge plug and fishing, it is also used for sidetracking drilling, drilling open hole and coring. The product is designed and manufactured according to API Spec 8C specifications.

Description

Product Details

⊙The power swivel complies with API 8C specification.

⊙Power Swivel is hydraulic motor-driven swivel.

⊙The variable volume pump and hydraulic system allow torque and speed to be infinitely adjusted within stated ranges without shifting gears or stopping and starting the unit.

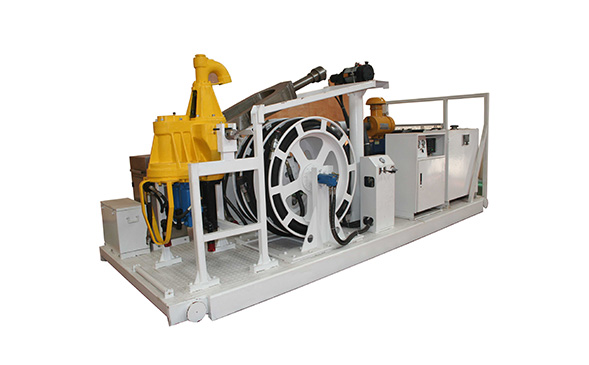

⊙Power Swivel is equipped with a hydraulic power unit with remote electric control system.All elements are set on a base seat, firm and convenient.

Specifications

Model DSL-110 DSL-135
Max. Static Load   kN 1100 1350
US ton 120 150
Dynamic Load Rating  kN 600 1170
US ton 65 130
Max. Speed rpm 150 160
Max. Pressure  MPa 35 35
psi 5000 5000
Torque rating N.m 6000 16270
ft .lbf 4,420 12000
Bore tdru stem mm 68.26 61.91
in 2 11/16 2-7/16"
Gooseneck Connection / 51/4– 4--ACME 3" NPT
Sub Connection / 31/2 IF 31/2 IF
Size mm 2361X953X865 2066 X1105X550
in 93X37.5X34 81X43.5X22
Weight   kg 910 1270
lb 2000 2800
