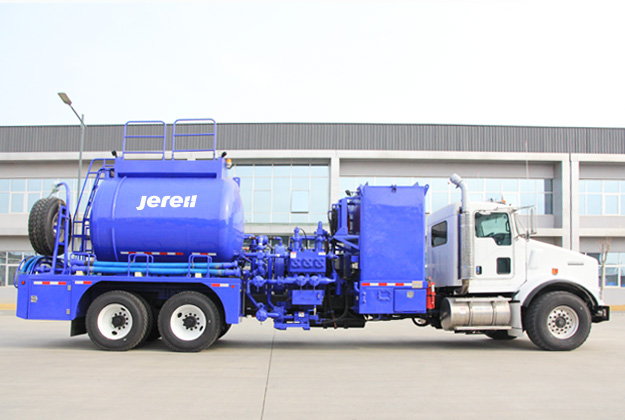

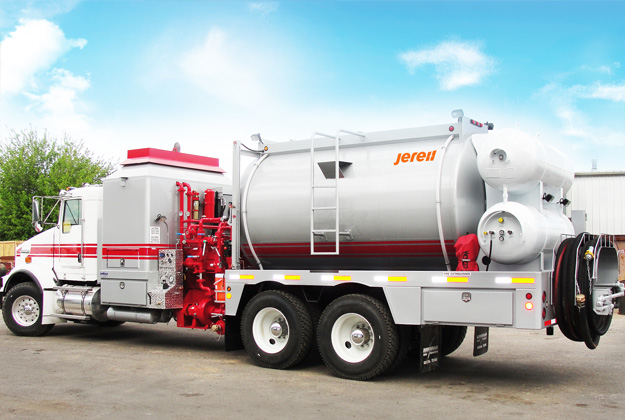

Hot Oil (Water) Unit

Remote CO2/dry powder fire extinguishers, overpressure and overtemperature protections deliver reliable safety;

Description

Hot Oil (Water) Unit

Features

⊙ Suitable for onshore paraffin removal applications;


⊙ Applicable to HTHP, HTLP, LTHP and LTLP services;


⊙ Jereh intelligent control system permits one-key setting and automatic temperature regulation (±2 ℃);


⊙ Remote CO2/dry powder fire extinguishers, overpressure and overtemperature protections deliver reliable safety;


⊙ Resistant to high temperature and corrosion, and applicable to water, crude oil, sea water and other chemical solutions;


⊙ The large capacity storage tank, fuel tank, liquid supply system and high viscosity liquid transferring system ensure efficient and continuous operation on site.


Specifications

Model
QLC70-3.5M
QLC70-5.5M
QLC70-7M
QLC70-8M
Truck
BENZ/VOLVO/MAN/BEIBEN
Triplex Plunger Pump
JR600SN
Centrifugal Pump
3×2×13
Heater
3.5M Btu/h
5.5M Btu/h
7M Btu/h
8M Btu/h
Fuel
Diesel/LPG/CNG/LNG
Max. Working Pressure
70 MPa(10,150 psi)
Capacity
200~400 L/min
Medium
Water/crude oil
