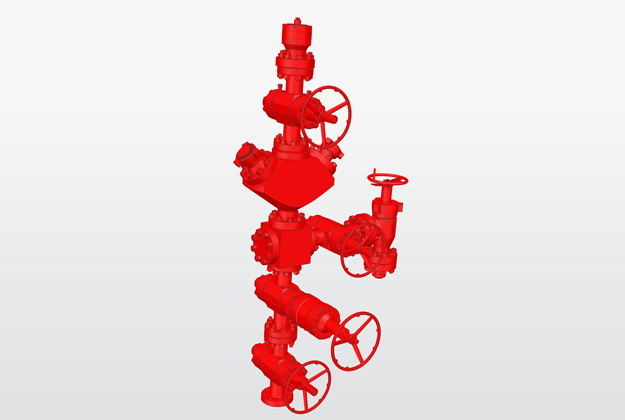

Frac Tree

Stacked-valve frac tree is flexible in structure, strong in customization and diversity in drive mode. The frac tree can be remotely controlled to deliver high safety.

Description

Features

⊙The design, manufacture and inspection of products fully comply with API 6A Specification for Wellhead and Tree Equipment, which can be matched and interchangeable with equipment that conforms to API 6A Specification;
⊙The inlet position of fracturing head can be customized, and flexible in structure, easing manifold arrangement;
⊙The outlets on each side are opposite to each other, buffering the impact of large-displacement jet on the equipment and extending service life.

Specifications

Rated Pressure

103.5 MPa(15000 psi)、138 MPa(20000 psi)、175 MPa(25000 psi)

Main Bore

5 1/8"、7 1/16"

Temperature

-29℃~+121℃(-20℉~+250℉)、-46℃~+121℃(-50℉~+250℉)

Material

AA、BB、CC、DD、EE、FF、HH

Specification Level

PSL3

Performance Level

PR1、PR2

Medium

Drilling fluid, acidizing fracturing fluid, oil, sour natural gas, water, etc.
