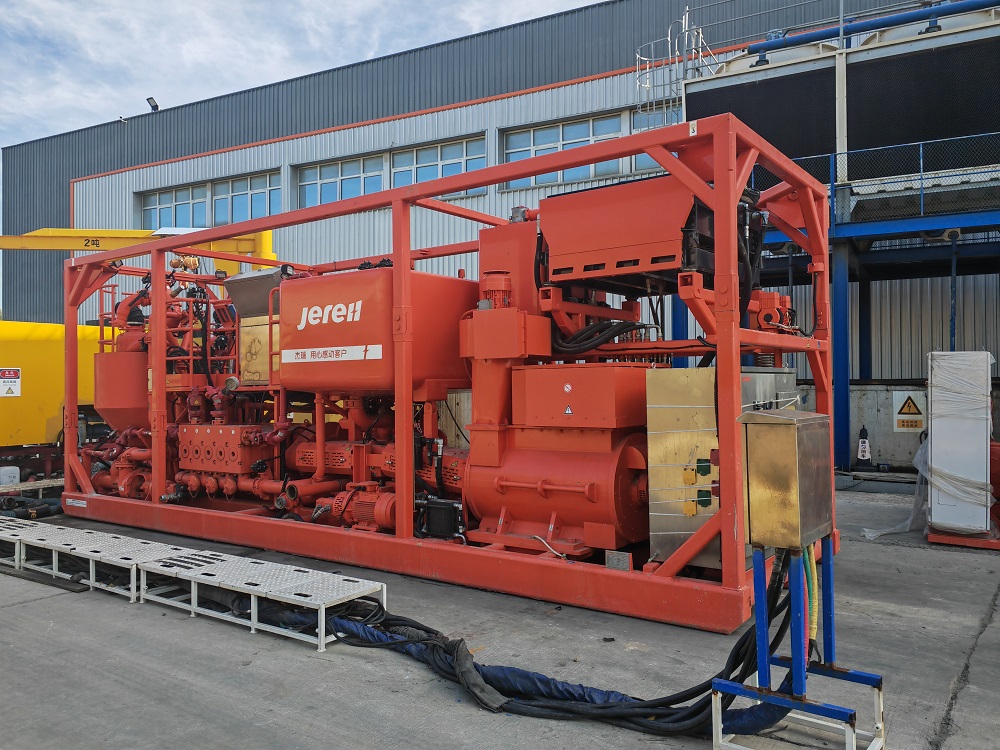

Electric Cementing Unit

Intelligent: The health evaluation and diagnostic system has the functions of on-line diagnosis, predictive maintenance and maintenance alert. The output power of equipment can be set according to actual conditions

Description

⊙ Intelligent: The health evaluation and diagnostic system has the functions of on-line diagnosis, predictive maintenance and maintenance alert. The output power of equipment can be set according to actual conditions.

⊙ Automated: One button to complete the full-process operation from pre-mixing to cleaning, no personnel involved during process.

⊙ Fine Control: The motor with VFD delivers continuous displacement change and wide regulation of pressure and rate, meeting the requirements of various working conditions.

⊙ Strong Mixing: The self-developed automatic mixing system (AMS) enables the slurry mixing to be more efficient and stable.

⊙ Double-voltage Drive: The cable launch and recovery device reduces the operation strength and improves preparation efficiency for operation.

⊙ Efficient & Economic: The plunger pump driven by motor directly improves transmission efficiency by more than 10% and load rate. Fill the motor with grease every 3000h. Few consumables delivers low maintenance cost and frequency.

⊙ Remote Monitoring: Viewing data by cloud platform can achieve three-level monitoring "equipment→remote client→base".

Specifications

Carrier Truck/Trailer/Skid

Chassis

BENZ/MAN/VOLVO/BEIBEN/SINOTRUK

Main Motor

Motor with VFD 500 kW

Variable Frequency Motor 1650 kW

Auxiliary Motor

Motor with VFD 315 kW

Variable Frequency Motor 315 kW

Plunger Pump

JR1000QS

JR2500QL

Plunger Dia.

3 1/2″

4″

4 1/2″

4″

4 1/2″

Max. Working Pressure

71.7 MPa

(10,394 psi)

54.9 MPa

(7,958 psi)

43.4 MPa

(6,288 psi)

84.5 MPa

(12,250 psi)

66.8 MPa

(9,679 psi)

Max. Working Flowrate

2.2 m³/min

(569 gpm)

2.8 m³/min

(742 gpm)

3.6 m³/min

(940 gpm)

2.8 m³/min

(746 gpm)

3.6 m³/min

(945 gpm)

Centrifugal Pump

Mixing Water & Water Supply Pump: 4×3×13-13

 Recirculating & Boosting Pump: 6×5×11-11

Displacement Tank

2×2 m³ (2×12 bbl)

Slurry Mixing Tank

2.4 m³ (15.1 bbl)

Slurry Density

1.0~2.6 g/cm³ (8.3~22 ppg)

Max. Mixing Capacity

4.6 m³/min (1,215 gpm)

Slurry Mixing System

AMS4.1
